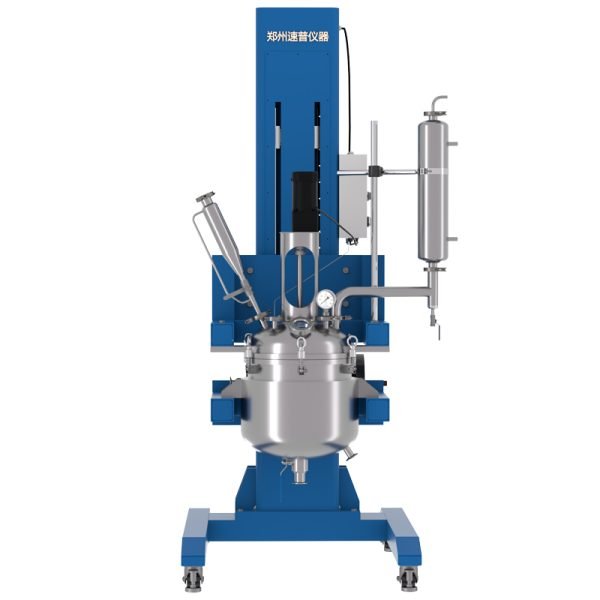

20L Explosion-proof Electric Lifting Stainless Steel Reaction

The 20L explosion-proof electric lifting stainless steel reactor is a core piece of equipment for laboratories and small-to-medium scale production, combining safety, ease of operation, and versatility. Its core design focuses on explosion protection, featuring an explosion-proof motor, explosion-proof control system, and compliance with national explosion-proof certification standards, ensuring safe operation in processes involving flammable or explosive solvents or gases. The equipment is made of high-quality stainless steel, offering excellent corrosion resistance. A ​​significant feature is the electric lifting system, which allows for smooth and flexible lifting and tilting of the reactor vessel, greatly simplifying feeding, cleaning, discharging, and maintenance processes, improving work efficiency and reducing labor intensity. This reactor is typically equipped with variable frequency speed control, mechanical seals, jacketed heating/cooling (oil bath or circulating medium), and various stirrer options such as anchor or paddle types, enabling precise control of reaction temperature, pressure, and mixing conditions. It is widely applicable to synthesis, extraction, mixing, and other processes in fine chemical, pharmaceutical, and research fields.

Model: DBSF-20L
Specifications: 20L
Category: Stainless Steel Reactor Series
Advantages: 1. Intrinsically Safe Explosion-Proof Design: The core electrical components (such as motors and control boxes) adopt nationally certified explosion-proof designs, effectively isolating electrical sparks from flammable environments. It is specifically designed for handling chemical reactions involving flammable, explosive, or hazardous gases, ensuring the safety of experiments and production. 2. High-Quality Corrosion-Resistant Material: The main body is made of 304 or 316L stainless steel, possessing excellent corrosion resistance and capable of withstanding various acids, alkalis, and organic solvents, ensuring material purity and extending equipment lifespan. 3. Convenient Electric Lifting Operation: Integrated electric lifting mechanism allows for smooth and precise lifting and tilting of the reactor body. This greatly simplifies feeding, cleaning, discharging, and maintenance processes, reducing labor intensity, improving work efficiency, and avoiding the risks of manual operation. 4. Efficient Mixing and Mass Transfer: Equipped with variable frequency speed control drive and anchor-type agitator…
