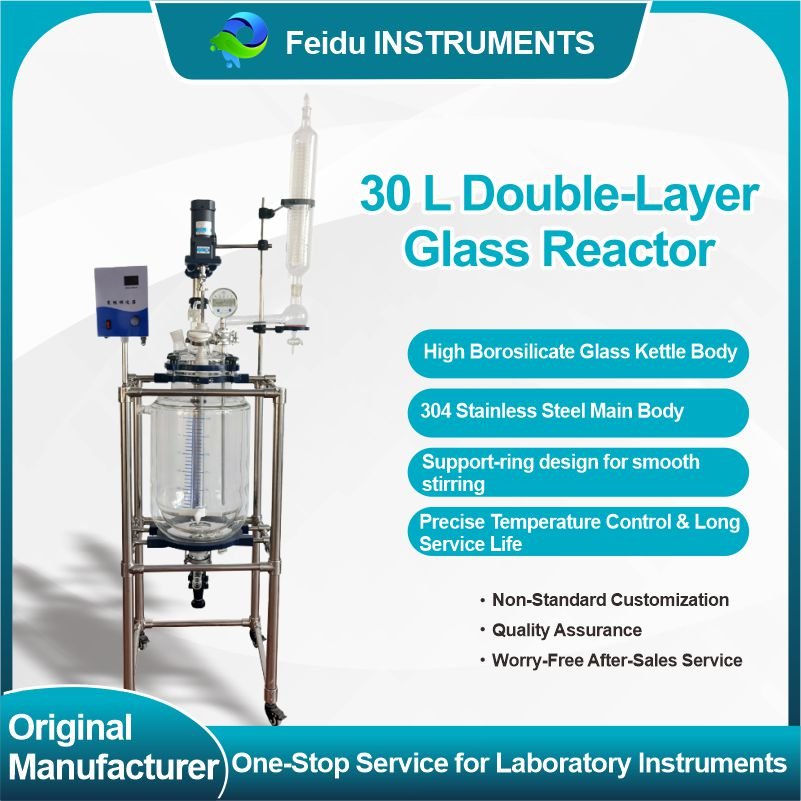

30L Glass Reactor

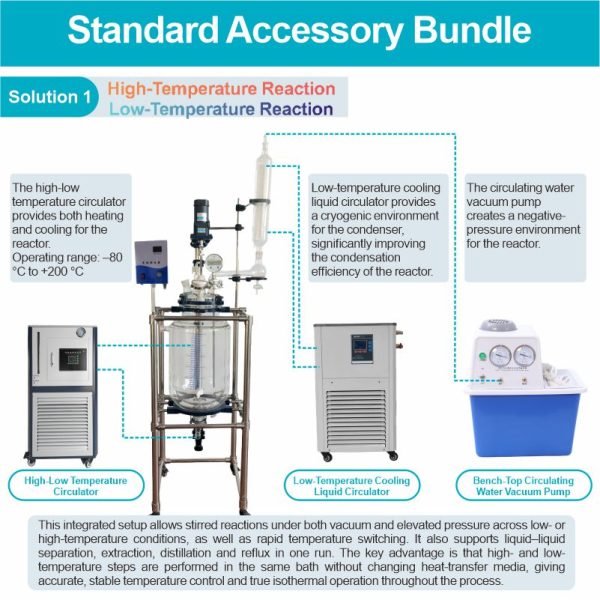

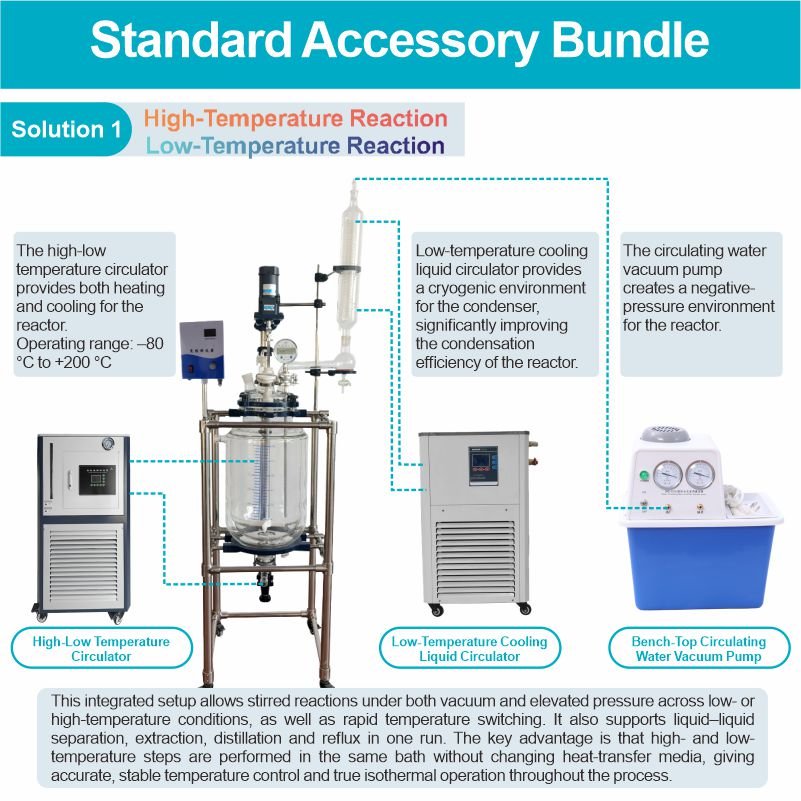

The double-walled glass reactor features a double-layered glass design. The inner layer contains the reaction solvent for stirring, while the outer layer can be circulated with different heat sources (refrigeration, hot water, or hot oil) for heating or cooling. Under set constant temperature conditions, stirring reactions can be carried out in the sealed glass reactor at atmospheric or negative pressure, depending on the application requirements. It also allows for reflux and distillation of the reaction solution, making it an ideal pilot-scale and production equipment for modern fine chemical plants, biopharmaceuticals, and the synthesis of new materials.

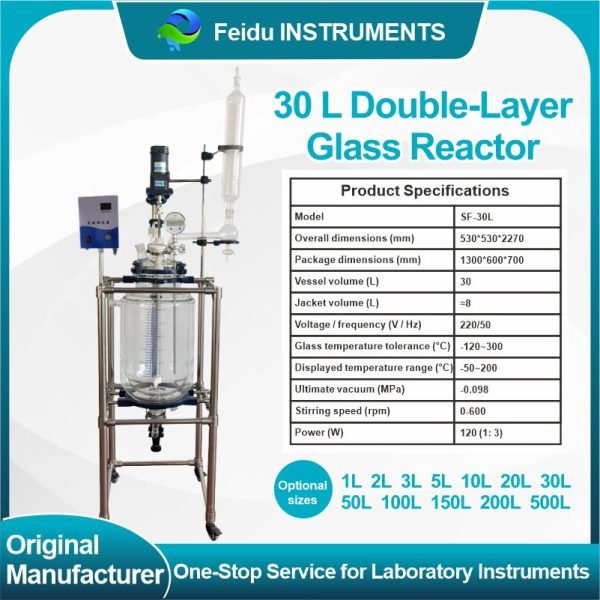

Model: SF212-30L
Specifications: 30L
Category: Double-layer glass reactor

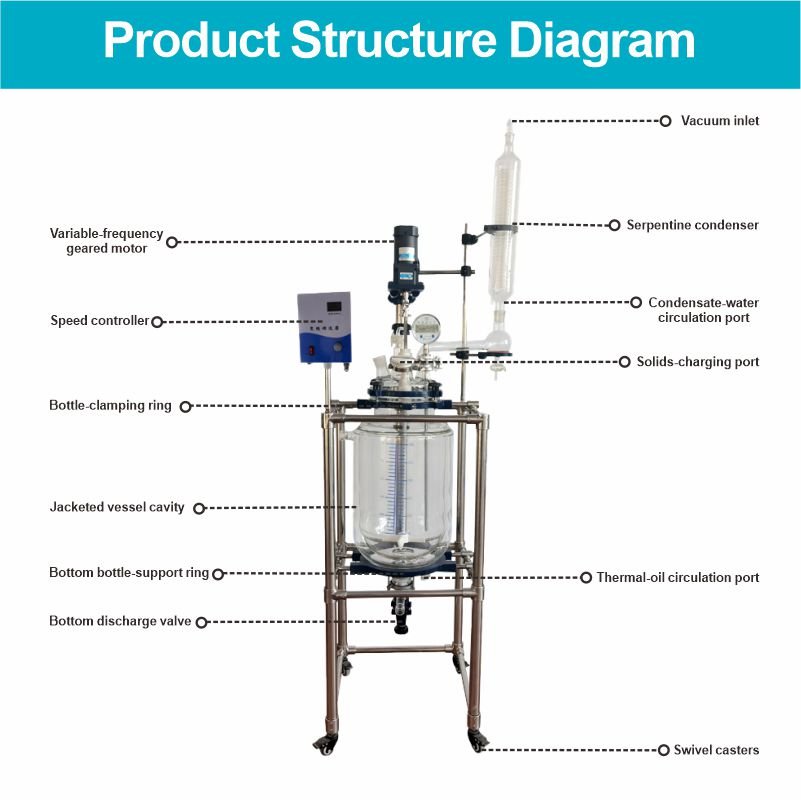

Advantages: 1. Variable frequency speed control, AC induction motor. Constant speed, no brushes, no sparks, safe and stable, can work continuously. 2. All glassware is made of GG17 high borosilicate glass, with excellent chemical and physical properties. 3. Hot oil can be circulated through the glass jacket interface for heating reactions, and coolant can be used for low-temperature reactions. 4. Can react at room temperature; tap water can quickly remove the heat of reaction. 5. The discharge port has a flange and PTFE valve, no dead corners inside the container, and is detachable for easy discharge of solid materials. 6. Five-port reactor cover with extra-large opening for easy cleaning; standard port can be used to assemble reflux and distillation synthesis devices.
