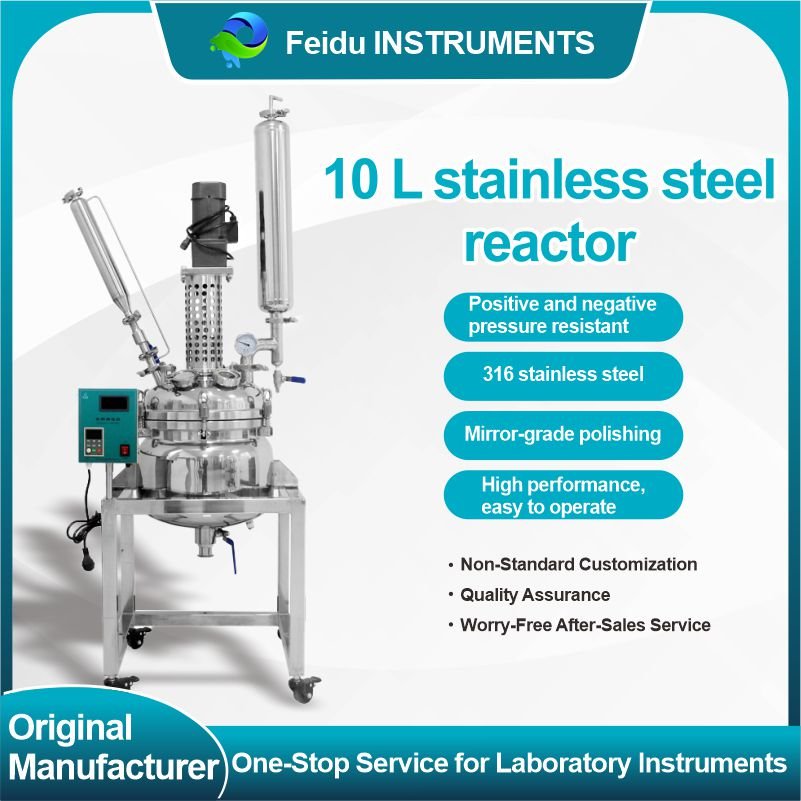

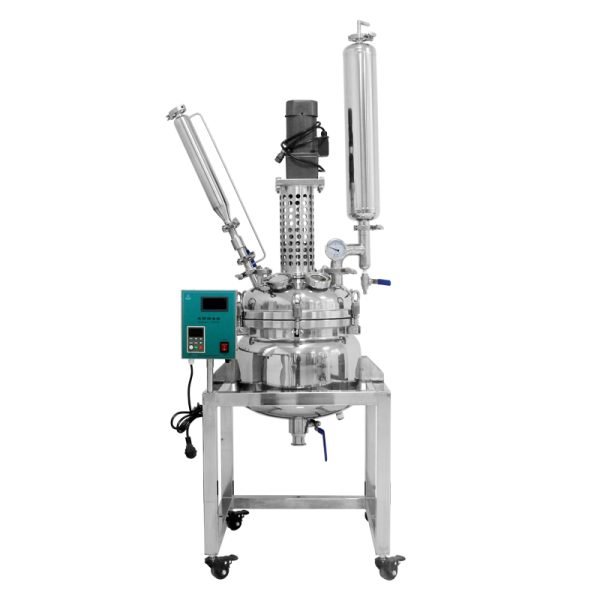

New 10L Stainless Steel Reactor

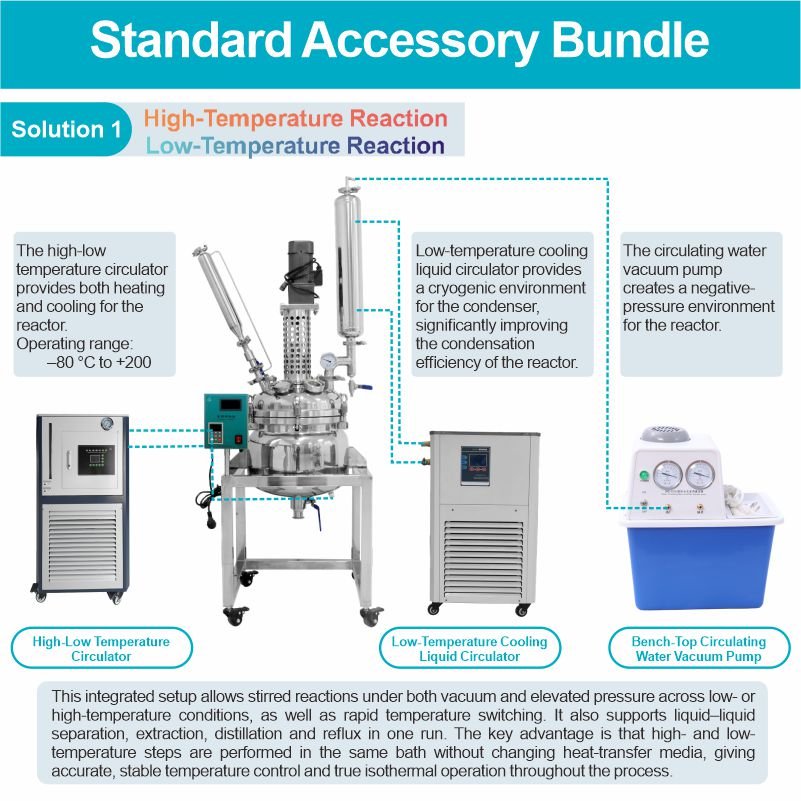

The double-layered stainless steel reactor features a double-walled stainless steel design. The inner layer holds the reaction solvent for stirring reactions, while the outer jacket can be connected to different heating or cooling sources (refrigerant, hot water, or hot oil) for circulating heating or cooling. Under controlled temperature conditions, stirring reactions can be carried out in the sealed stainless steel reactor under normal or reduced pressure, and reflux and distillation of the reaction solution are also possible. It is an ideal pilot-scale and production equipment for modern fine chemical plants, biopharmaceutical companies, and new material synthesis.

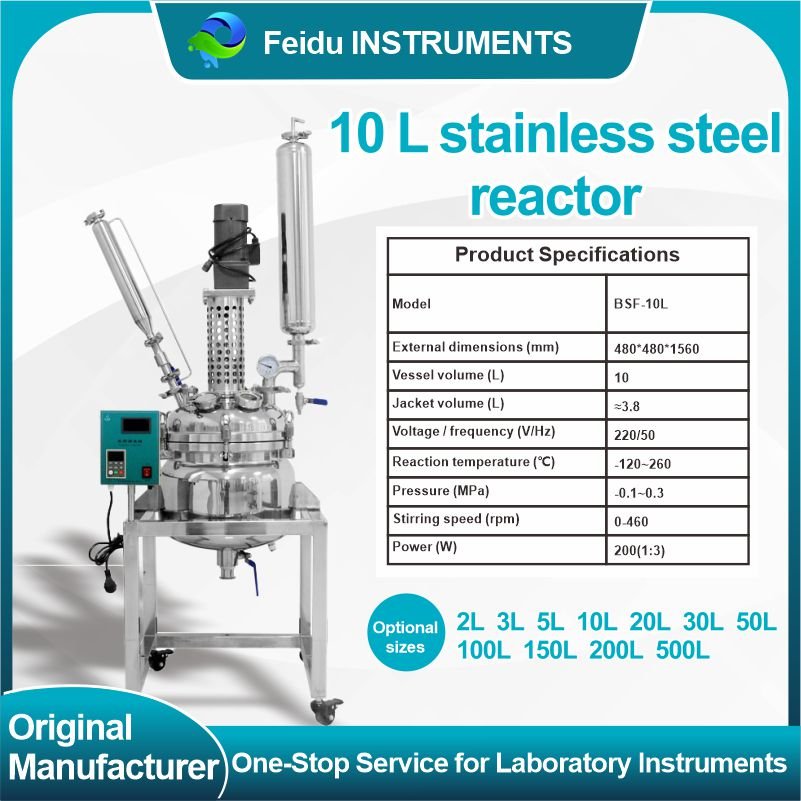

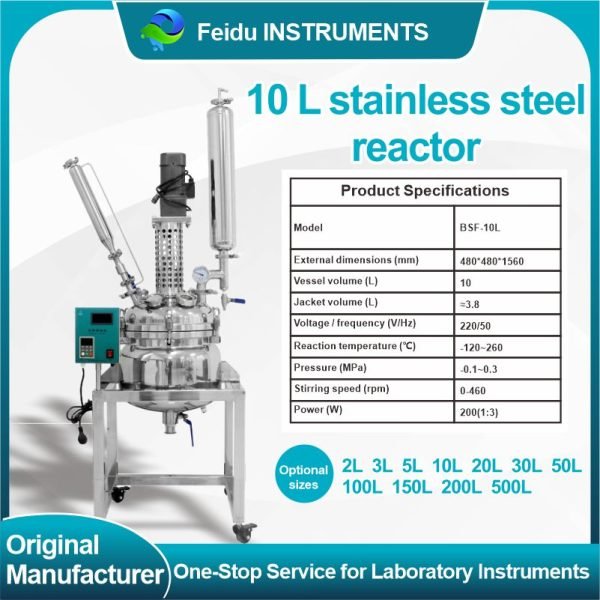

Model: BSF-10L
Specifications: 10L
Category: Stainless Steel Reactor Series

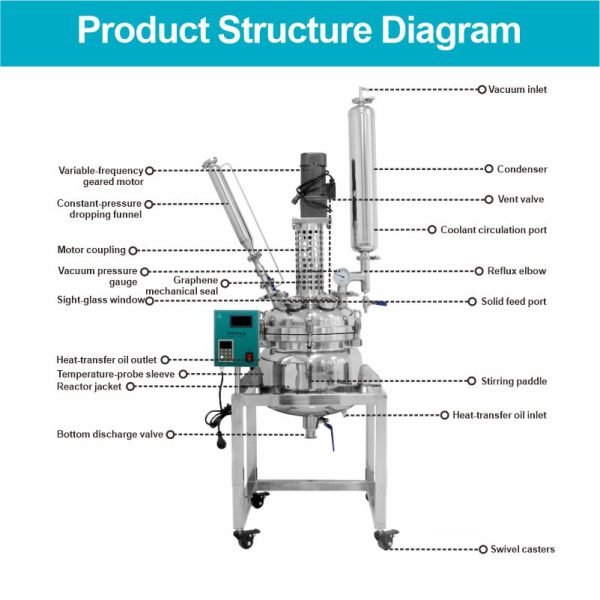

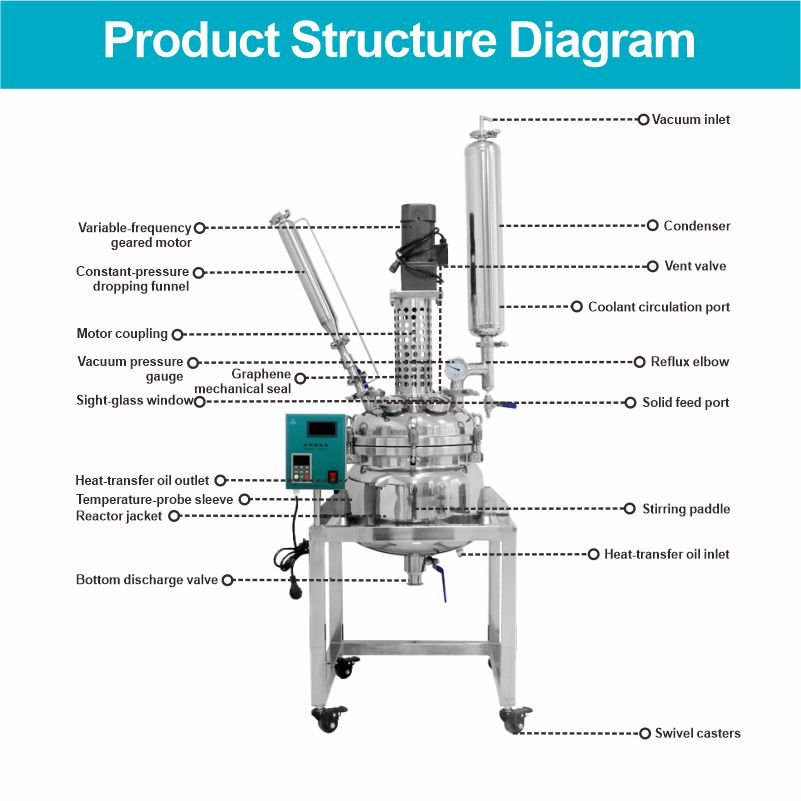

Advantages: 1. Variable frequency speed control, AC induction motor. Constant speed, brushless, spark-free, safe and stable, and capable of continuous operation. 2. The entire instrument is made of SUS316L/SUS304 stainless steel, possessing excellent chemical and physical properties. 3. The jacketed interface allows for heating reactions by circulating hot oil, or low-temperature reactions by circulating coolant. 4. Reactions can be carried out at room temperature, and tap water can be used to quickly remove reaction heat. 5. The bottom discharge port uses a stainless steel ball valve, ensuring no dead corners in the container and allowing for easy removal of solid materials. 6. The eight-port reactor lid features an extra-large opening for easy cleaning, and standard ports allow for the assembly of reflux, distillation, and synthesis devices.
